Bendable and Expandable LED Magic Bar with Full Color RGB for Entertainment Venues
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Charming |
| 인증: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| 모델 번호: | LU-40 |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 케이스, 나무 케이스, 비행 케이스 |
| 배달 시간: | 결제 후 영업일 기준 30일 |
| 지불 조건: | L/C, T/T, Western Union, PayPal, 현금 |
| 공급 능력: | 주당 500 개 PC |
|
상세 정보 |
|||
| 시야각: | 120° | 회색 레벨: | 8비트 |
|---|---|---|---|
| 작동 온도: | - 40~60' Ｃ | 작동 습도: | 10%-90%RH |
제품 설명

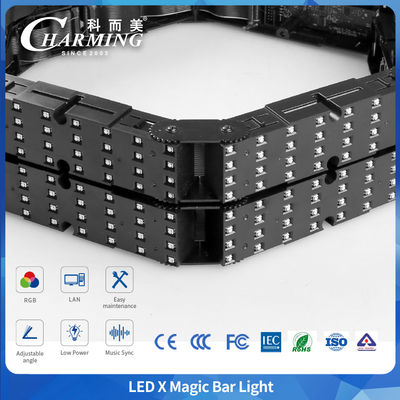

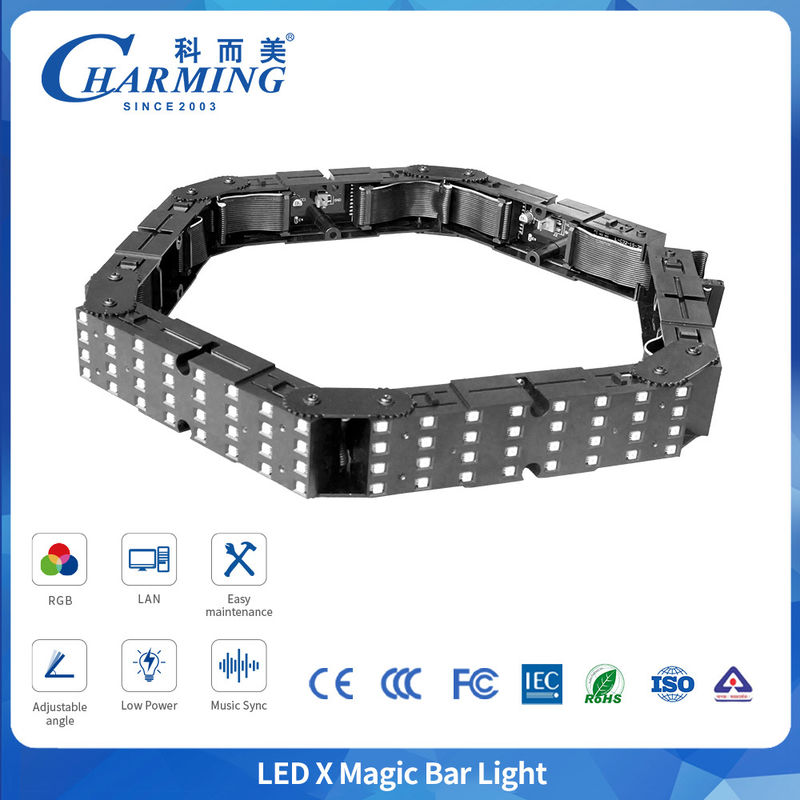

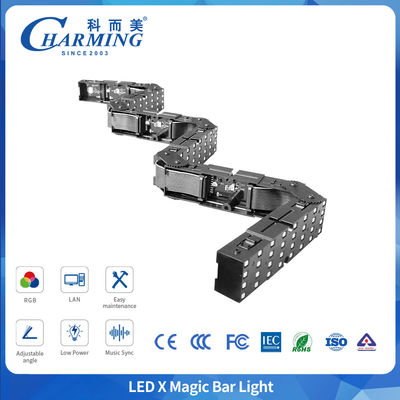

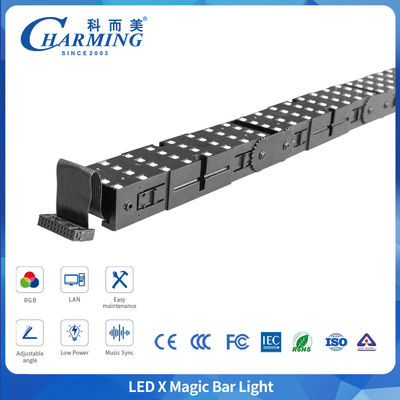

Bendable and Expandable LED Magic Bar for Entertainment Venues
Product Overview
Modular LED lighting solution designed specifically for entertainment venues, featuring flexible combination capabilities and excellent light output.
Key Features
- Modular Structure Design
- Expandable Configuration
- Flexible Combination Options
- Indoor Application Focus
- Compact & Lightweight Construction
- Full Color RGB Capability
- Good Light Output Performance
- Durable for Indoor Use
Product Visuals
Product Design
Technical Specifications
| Type Number | LU-40 |
|---|---|
| Dimension (mm) | 150x40x25MM |
| LED Quantity | 32 PCS |
| Pixel Quantity | 8PCS |
| LED Standard | SMD3535 |
| Color | Full Color RGB |
| Max. Power (W) | 5W |
| Unit Weight (KG) | 0.07KG |
| Crust Material | Polycarbonate |
| Light Flux (LM) | 120LM |
Installation Procedure
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Packaging Options
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
Packaging Example
